How to Control Melt Temperature for Low Porosity Castings

Why Melt Temperature Drives Gas Porosity

Gas porosity forms when dissolved gases in the metal do not escape during solidification. The amount of gas a metal holds changes with heat. If the melt temperature is too high, the metal holds more dissolved gas and releases it as bubbles when pressure drops. If the temperature is too low, the metal may solidify before vents can clear trapped gas.

Both extremes create voids. The first cause is common in aluminum and magnesium alloys. The second shows up in zinc and lead dies. The goal is a narrow window where the metal stays fluid enough to flow into the die, yet hot enough to keep gas dissolved until the pressure cycle forces it out.

What You Need Before Setting the Parameter

Before touching a temperature setpoint, confirm three things. First, know the alloy composition. Different alloys have different liquidus and solidus temperatures. Second, check the die and vent design. A poorly vented die needs a hotter melt to keep the metal fluid longer. Third, verify the condition of your thermocouple or IR sensor. A drifting sensor gives false readings.

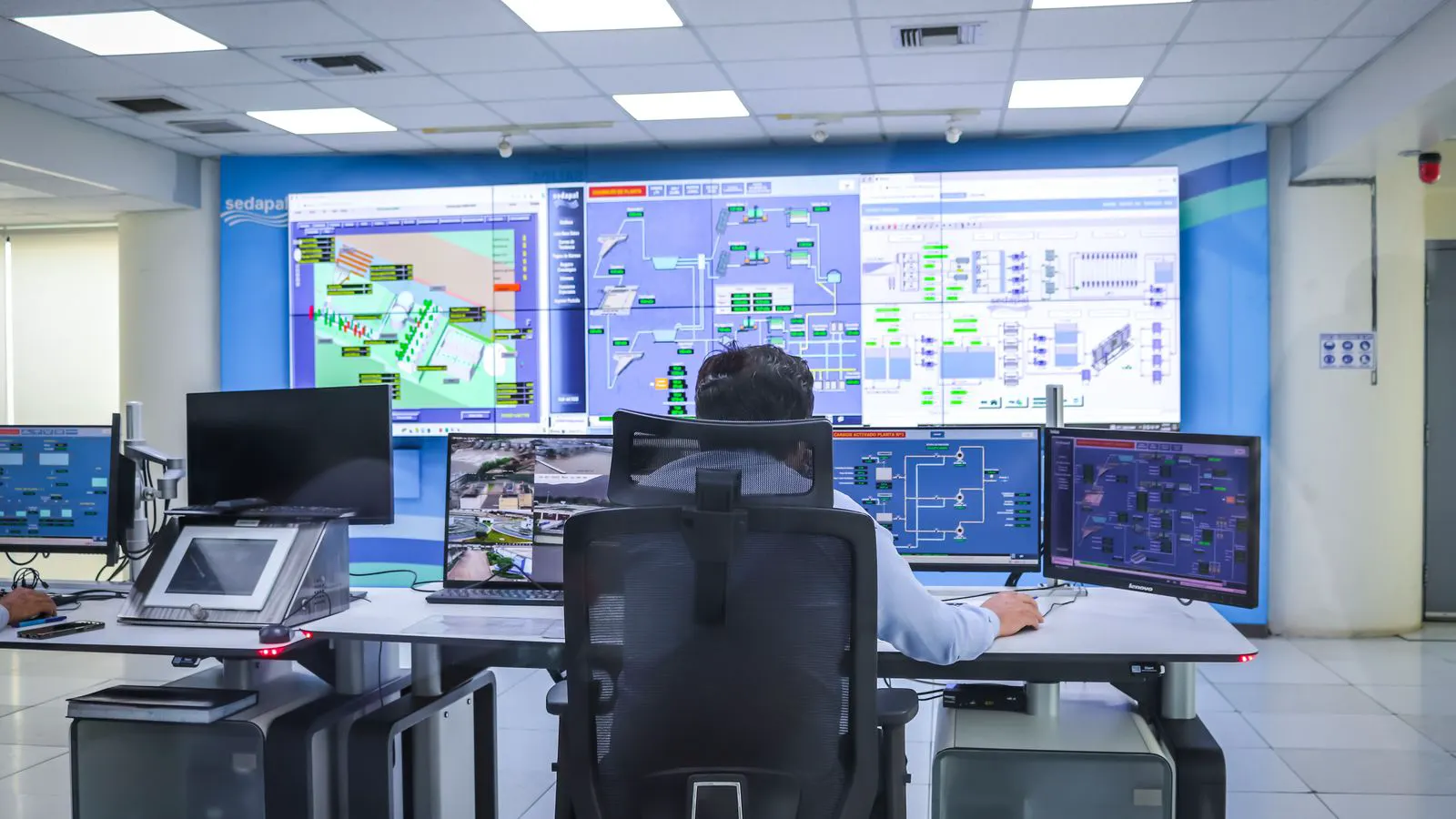

You also need access to your melt monitoring system. If you are not using a continuous temperature display, start with a handheld IR thermometer or a portable thermocouple. Record readings at the same location on the shot sleeve or ladle every few minutes. This gives you a baseline even if your machine does not log data automatically.

Step 1: Identify the Stable Melt Range

Start at the upper end of the recommended liquid temperature for your alloy. Many foundries run aluminum die casting between 700 and 740 degrees Celsius, but this varies by alloy and die design. If your alloy is zinc, the range is different. Use your supplier data or previous production records.

If you do not have records, begin at the upper limit and test. Cast a small batch. Inspect for porosity. If the parts show surface bloat or internal gas voids, lower the temperature by ten degrees. If the parts show flow lines or cold shuts, raise it by ten degrees. Move in small steps. Do not jump twenty or thirty degrees at once.

Step 2: Set the Holding Temperature

Once you find a working range, set your holding temperature at the lower end of that range. This gives you a buffer. If the melt cools slightly during a short pause, you still have enough heat to keep the metal fluid. If you set it at the upper end, a small drift pushes you into the gas-rich zone.

For most production lines, the holding temperature should be ten to twenty degrees below the maximum safe working temperature. This margin matters. The melt cools in the shot sleeve. The distance the metal travels before hitting the die matters. A hotter melt at the furnace may be too hot by the time it reaches the die.

Step 3: Monitor Temperature at the Shot Position

The furnace temperature is not the same as the temperature at the die. Heat is lost in the shot sleeve, the transfer line, and the mold. Measure at the point where the metal enters the die. If your machine has an in-situ thermocouple, use it. If not, take readings at the shot sleeve exit with an IR thermometer.

Record the reading every fifteen minutes. Plot the values. Look for drift. If the temperature drops more than five degrees over an hour, your melt system may be losing heat too fast. If it rises, the burner may be overfiring or the thermocouple may be reading incorrectly. Consistent readings matter more than a single perfect number.

Step 4: Control Melt Stability During Production

Temperature control is not just a setpoint. It is a continuous process. Keep the melt bath shallow. A deep bath holds heat but also traps impurities and gas. A shallow bath cools faster but lets you manage the temperature more precisely. Stir the melt gently before each shot. Stirring equalizes the temperature and helps gas escape from the surface.

Avoid adding cold metal to a hot bath. If you need to adjust the temperature, add small amounts of preheated metal or use the furnace burner. A large cold addition causes a temperature spike in the gas space and can push dissolved gas out of solution.

Step 5: Adjust for Die Condition and Venting

Die condition changes how much heat the metal needs. A new die absorbs heat quickly. A worn die with hot spots changes the solidification pattern. If your die is dirty or has scale, the metal loses heat faster and may solidify too early. Clean the die. Check the vent design.

Venting is not just about removing gas. It is about providing a path for gas to escape before the metal seals the vent. If the vent is too small, the gas has to push through a narrow channel. The metal cools in that channel. The gas gets trapped. In that case, a hotter melt helps keep the metal fluid long enough to clear the vent.

Step 6: Use Process Parameters as a Pair

Melt temperature does not work alone. Shot pressure, shot speed, and holding time all interact with temperature. If you raise the melt temperature, you may need to lower the shot pressure to avoid pushing gas into the mold. If you lower the temperature, you may need more holding time to keep the metal fluid.

Create a matrix. Pick three melt temperatures. Run a small batch at each. Record porosity, dimensional accuracy, and surface finish. Find the combination that gives the cleanest parts. This matrix is your baseline. Use it for new molds and new alloys.

Common Mistakes That Break Temperature Control

The most common mistake is reading the furnace temperature and assuming it matches the shot temperature. It does not. Always verify at the shot position.

Another mistake is changing too many variables at once. If you raise the temperature, change the vent, and adjust the shot pressure in the same batch, you will not know which change fixed the problem. Change one variable. Test. Record. Then move to the next.

A third mistake is ignoring sensor drift. Thermocouples drift over time. IR sensors drift with distance and angle. Calibrate your sensors regularly. If you are using an IR gun, keep the distance constant. Keep the angle the same. A reading taken at a different angle than your baseline is not comparable.

Verification: Confirm the Process Before the Next Run

Before you start a production run, cast three test pieces. Inspect them under a microscope or with a portable X-ray if available. Check the same areas where you have had porosity before. If the test pieces are clean, start production. If they are not, do not start. Fix the temperature, the vent, or the shot parameters first.

Document the settings. Write down the melt temperature, shot pressure, holding time, and die temperature. Keep this sheet at the machine. If porosity returns later, you can compare the new settings against the baseline.

Reference Table for Typical Melt Temperature Ranges

Alloy Group	Typical Liquid Range	Holding Target	Common Porosity Risk
Aluminum A356	700-740 C	710-725 C	Gas porosity at high temp
Aluminum A380	680-720 C	690-705 C	Shrinkage at low temp
Magnesium AZ91	650-690 C	660-675 C	Oxide porosity at high temp
Zinc	380-420 C	390-405 C	Shrinkage at low temp
Lead	300-340 C	310-325 C	Gas porosity at high temp

These ranges are general. Your die design and venting will shift the working point. Use the table as a starting point, not a fixed rule.

How Temperature Changes Affect Porosity Type

Gas porosity and shrinkage porosity respond differently to temperature. Gas porosity gets worse as temperature rises. The metal holds more gas. Shrinkage porosity gets worse as temperature falls. The metal solidifies too early and does not feed the last solidifying region.

This is why the narrow window matters. If you run too hot, you get gas voids. If you run too cold, you get shrinkage voids. The best parts come from the middle. That middle is not a single number. It is a range that changes with die condition, venting, and alloy.

When to Escalate the Problem

If temperature is correct and porosity still appears, stop and check the melt. Look for oxide film. Look for inclusions. Look for moisture in the die or mold. Water in the die creates steam. Steam is gas. It does not care about your temperature setpoint.

Also check the die for leaks. A small leak in the core can let air into the cavity. Air is gas. It forms porosity even if the melt is perfect. If the problem is not temperature, it is venting, die condition, or melt cleanliness.

Final Check: Close the Loop

The last step is to verify that the process holds over time. Run the line for two hours. Record the temperature every fifteen minutes. Cast a part every thirty minutes. Inspect each one. If the first part is clean and the tenth part shows porosity, your temperature is drifting or your die is changing.

A stable process is not a single good setting. It is a setting that holds across the shift. If you cannot hold it, you need better monitoring, a better die, or a better melt system. The temperature is the lever. The process is the machine. Keep the lever in the right place. Keep the machine stable. The porosity goes away.
